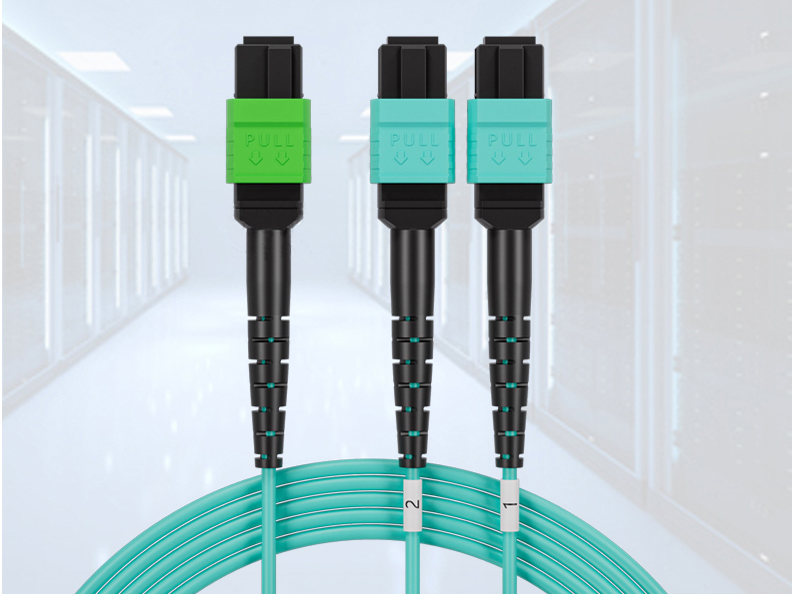

MTP breakout cable is designed to provide a more flexible multi-fiber cabling system based on MTP products. It can largely increase the capacity of the existing 16-fiber and 24-fiber MTP network. Unlike MTP Fanout cable, MTP breakout cables are terminated with MTP connectors on both ends, can provide more possibilities for the existing cabling system.

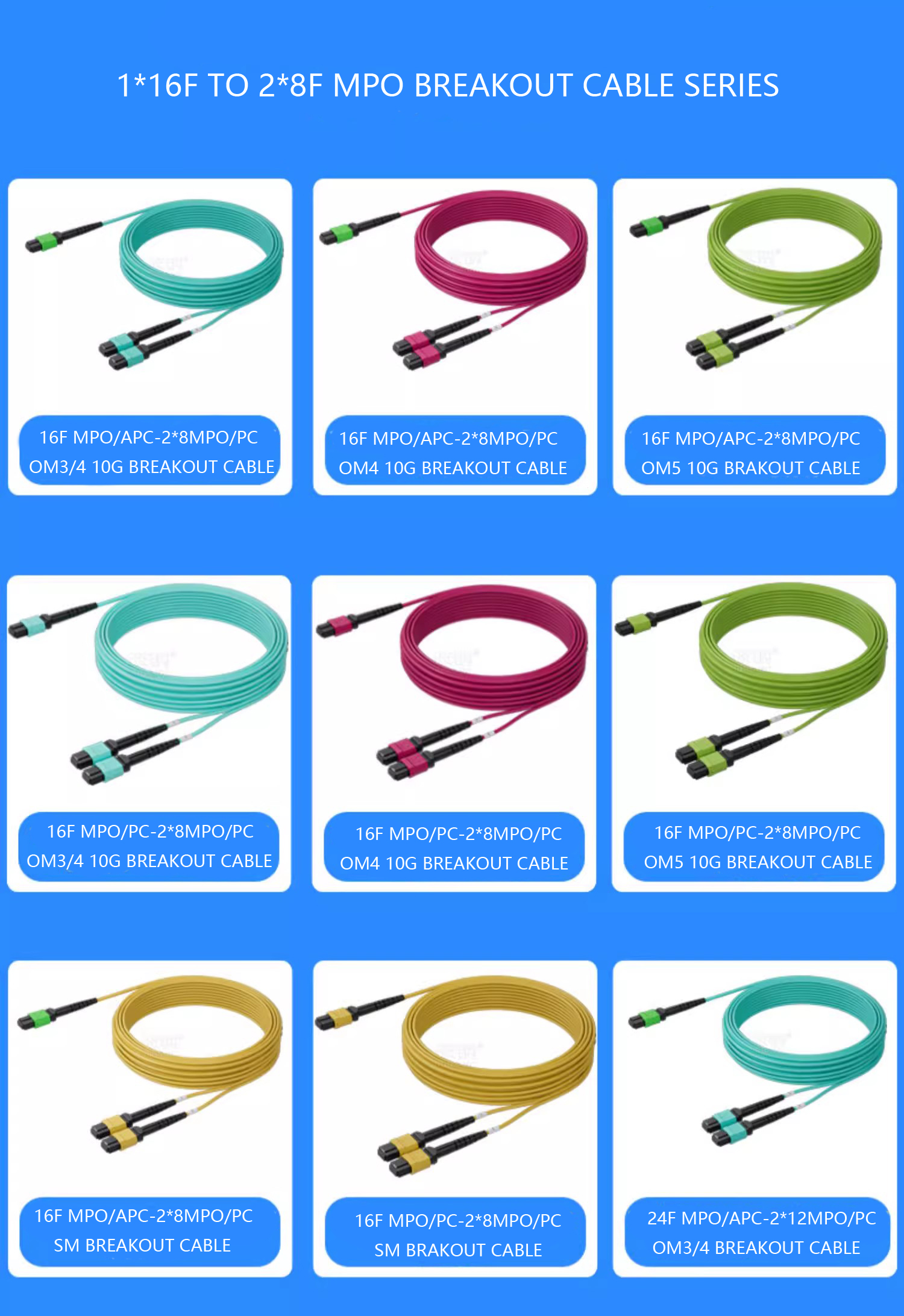

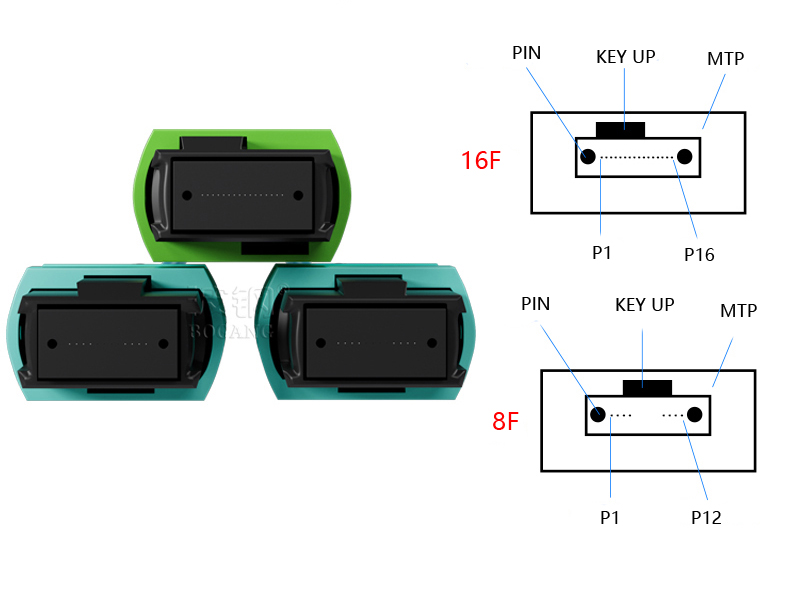

There are several types, according to the fiber cores, including 8F to 2*4F breakout cable, 16F MPO to 2*8F MPO breakout cable and 24F MPO to 2*12F MPO breakout cables; According to fiber types, including Singlemode, OM1, OM2, OM3, OM4 & OM5; According to connector polishing type, including APC and UPC.
|
Parameters |
Min. |
Typical |
Max. |
Unit. |
|
|
Operating Wavelength |
Single Mode |
1310 |
|
1620 |
nm |
|
Multi-mode |
850 |
|
1310 |
||
|
MPO Insertion Loss |
Single Mode |
|
|
0.6 |
dB |
|
Single Mode Low Loss |
|
0.3 |
0.35 |
||
|
Multi-mode |
|
|
0.75 |
||
|
Single Fiber Insertion Loss (Fan-out side) |
Single Mode |
|
|
0.2 |
dB |
|
Single Mode Low Loss |
|
|
0.3 |
||
|
Multi-mode |
|
|
0.3 |
||
|
Return Loss |
Single Mode |
50 |
|
|
dB |
|
Single Mode Low Loss |
60 |
|
|
||
|
Multi-mode |
30 |
|
|
||
|
Operating Temperature |
- 20 |
|
+ 70 |
°C |
|
|
Fiber Type |
SM ITU-T G652 and IEC 60793-2-50 B1.3 SM ITU-T G657A2/B2 and IEC 60793-2-50 B1.6A OM3 ISO/IEC 11801 and IEC 60793-2-10 Ala.2 |
||||
|
Cable Jacket Type |
Ribbon / Fan-out |
PVC/LSZH/OFNP |
|||
|
Cable Jacket Color |
Yellow |
G652 and G657 Single mode fiber |
|||
|
Orange |
OM2 Multi-mode fiber |
||||
|
Aqua |
OM3/OM4 fiber |
||||
|
Violet |
OM4 fiber |
||||
|
Flammability Rating |
IEC-60332-1, IEC-61034, IEC-60754-1 and 2 |
||||
Note: 1) IL is tested in room temperature. 2)Total IL is MPO IL + all Fan-out side IL. 3)Tested at 1310nm and 1550nm for single-mode jumper, 850nm and 1310nm for multi-mode jumper.
Quality and standards are the foundation of Haiyu Optical . We are dedicated to providing customers with the outstanding, standards-compliant products and services. Haiyu Optical has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.
