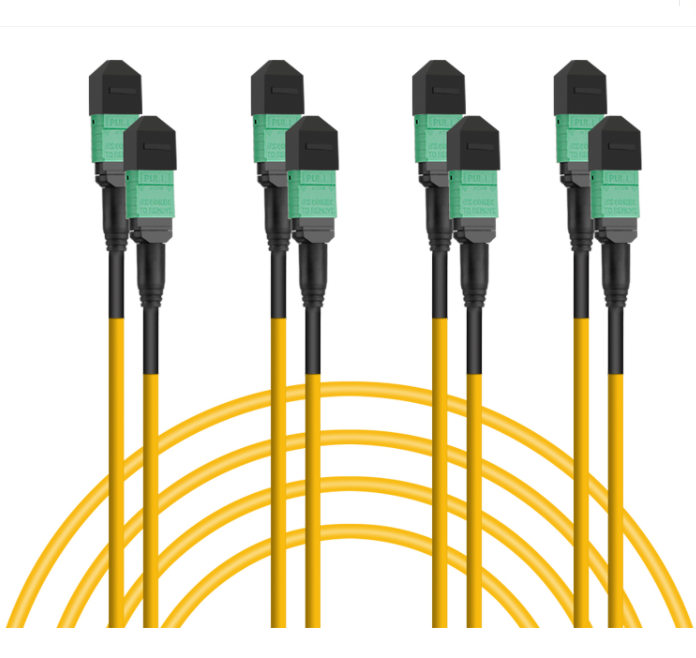

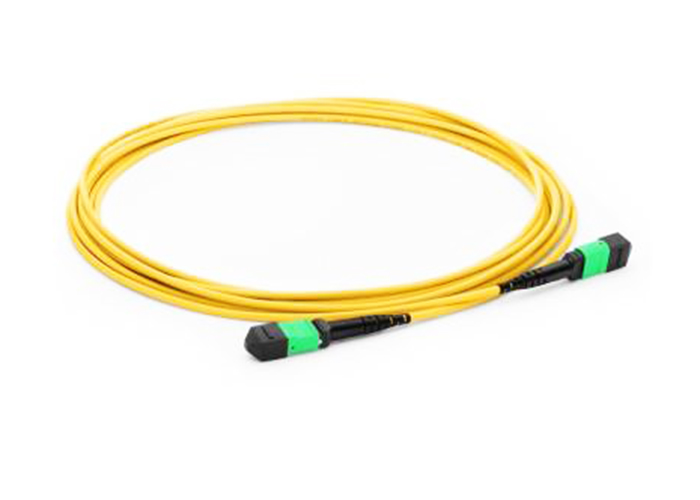

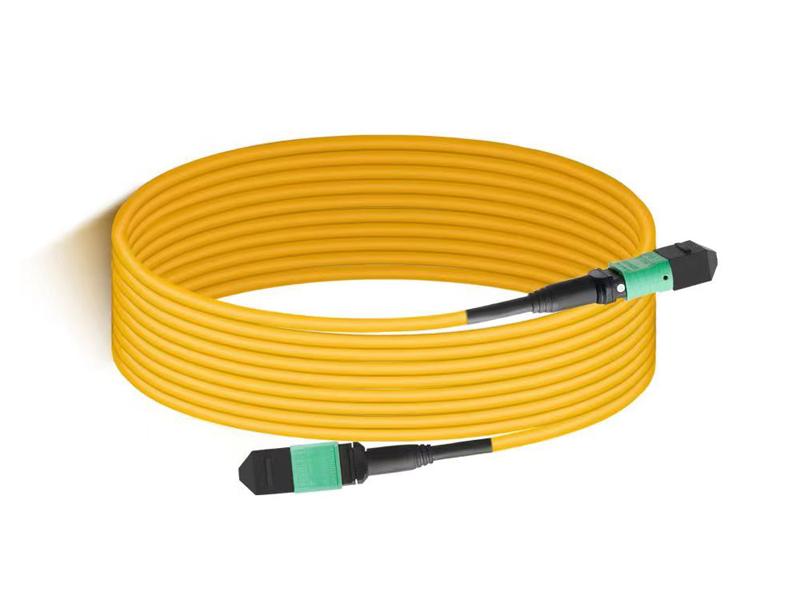

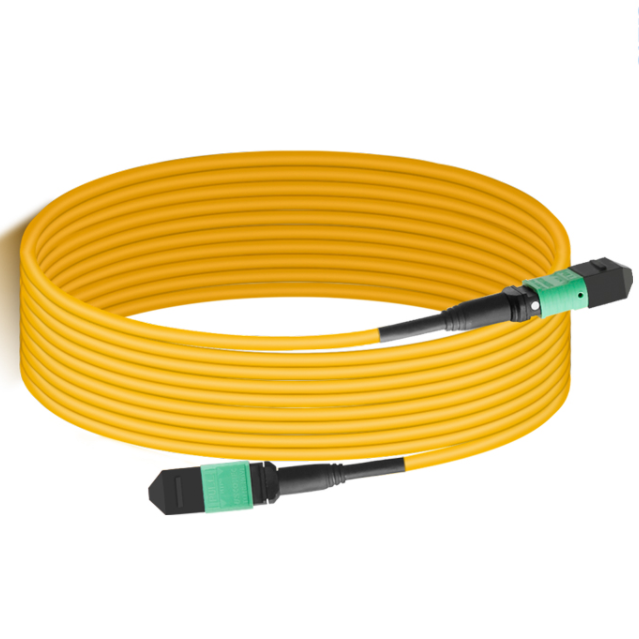

24 Fiber Singlemode MPO to MPO Fiber Optic Patch Cord

PRODUCT DESCRIPTION

MPO/MTP patch cord is a multi-fiber cable assembled with MPO/MTP connector at either end. It is widely used in the data center, central office, and any other high-density applications, both at single-mode and multi-mode wavelength.

Our 24F Singlemode MPO MTP Fiber Optic Patch Cord is a high-quality, reliable, and cost-effective connectivity solution for businesses of all sizes

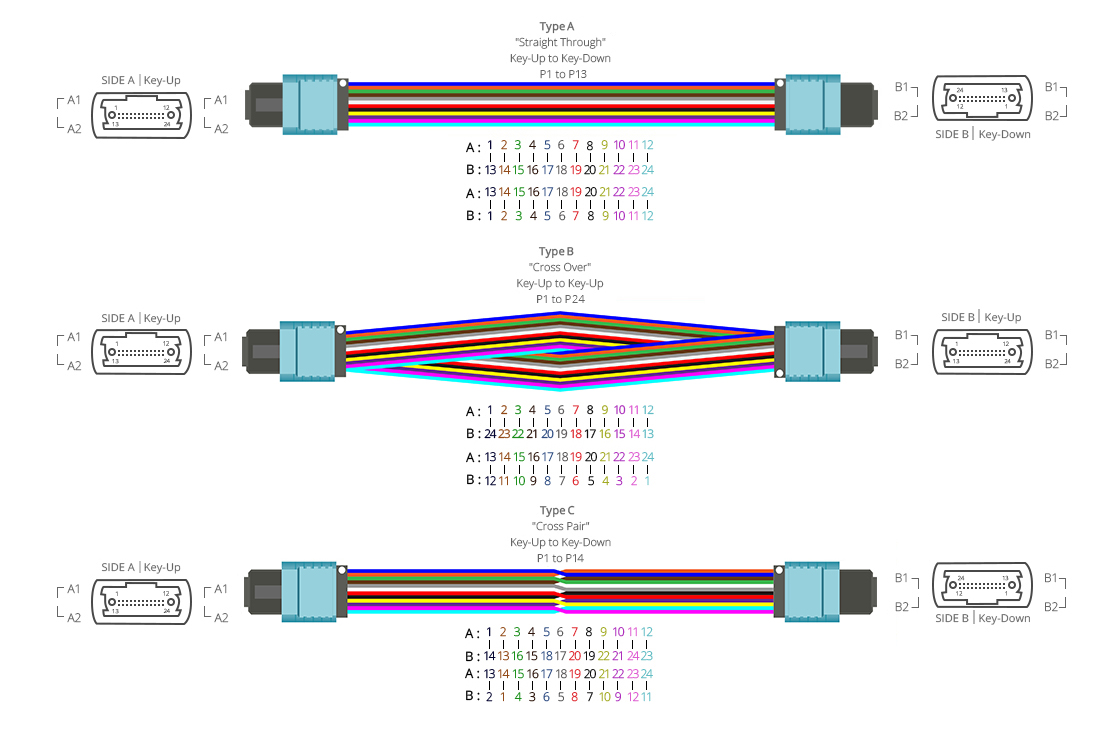

 MPO/MTP patch cord is not currently designed for field-fit applications, so it must be factory terminated. Since the sequence of the fibers cannot physically be changed after termination, making the polarity clear is important. According to IEC，there are three types, Polarity A, B, and C. Which type to choose depends on the individual applications. If the polarity is not be made correctly, the whole system will not work normally. Kindly refer below chart and confirm which polarity type you need.

MPO/MTP patch cord can be terminated with several MPO/MTP connectors at both ends. Such as the trunk cable is 144F, with 12 pieces 12F MPO connector at each end. And also can be one MPO/MTP connector at one side, another side is 8 or 12 LC connectors, It is called MPO breakout cable.

FEATURES

• Type A/B/C Optional , Elite, Plenum (OFNP), Yellow Jacket,
• 0.35dB insertion loss 3.0mm, suitable for 40G LR4 PSM, 40G QSFP PLR4 direct connection and high density data center.
• The MTP Trunk Cable is designed for 40G QSFP+ PLR4 optics direct connection and high-density data center applications;
• Haiyu Optical’s MTP connectors are fully compliant with the MPO standards

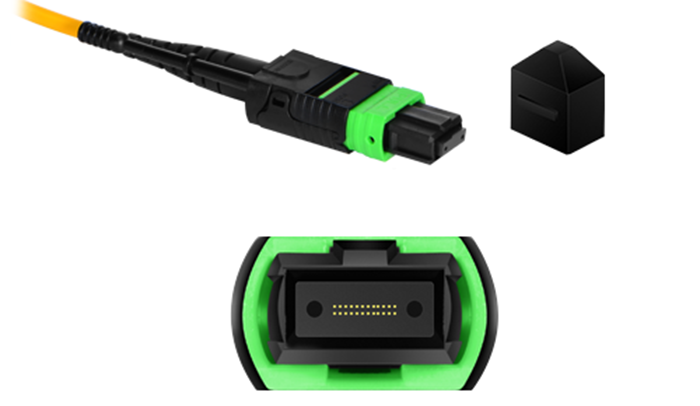

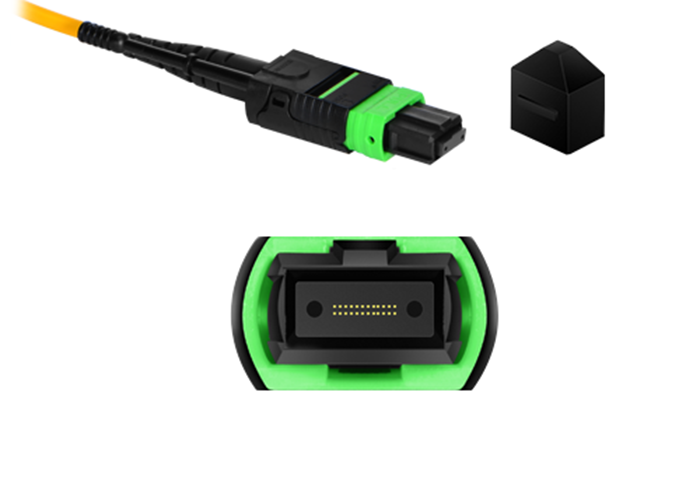

Compact design

• Compact joint design, 1 MPO/MTP connector can hold 24 cores, easy to plug and disassemble.







Plenum Rated Outer Jacket

• The cable jacket is plenum rated, ideal choice for certain building regulations which require specialized material to minimize damage in the event of a fire.

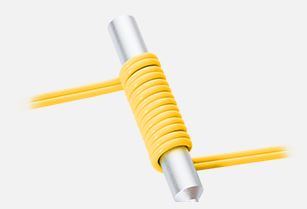

10.0mm Minimum Bend Insensitive Radius

• BIF show a great deal of resilience in situations where fibers are fixed to surfaces using clamping, tie-wrapping or stapling.



Technical Information

Test Assured Program

Haiyu Opticl has strictly test program to make sure every MPO/ MTP trunk cable 100% pass each test step. The Polarity test checking the polarity of each MPO MTP trunk cable. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.

Range of application

Optical System Access Network

Telecommunications networks

Broadband/CATV networks

Data communications networks, including high-bandwidth equipment

Quality Certification

Quality and standards are the foundation of Haiyu Optical . We are dedicated to providing customers with the outstanding, standards-compliant products and services. Haiyu Optical has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

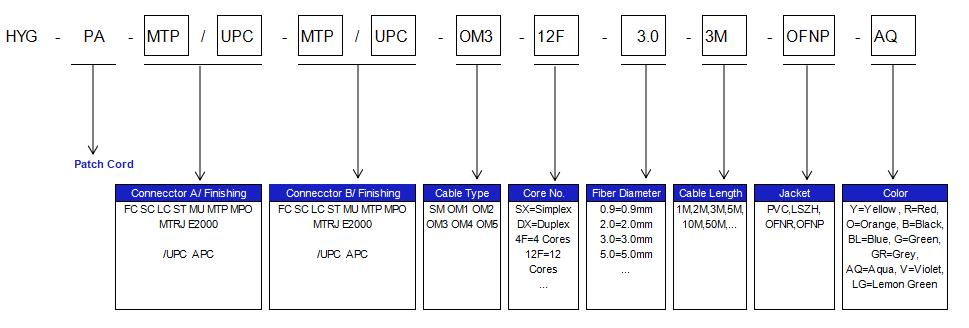

Order Informations

Questions & Answers

Q:I wonder what's the difference between OFNP and LSZH cable jacket?

A:OFNP (plenum) have the highest rated fire retardant where it emits little smoke during combustion, LSZH(Low Smoke Zero Halogen) cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat, eg. flame.

Q:Do you offer MTP fiber optic cable with BIF?

A：Yes. We offer MTP fiber optic cable made with Corning ClearCurve bend insensitive fiber. For multimode, its minimum bend radius is 7.5mm; for singlemode, it's 10mm.

Q:Is this APC or UPC? I know the green usually implies angle polished, but I have a few other cables that look the same as this picture with just a 90 degree flat polish.

A:For singlemode fiber it has APC polish with a 8 degree angle, multimode fiber is UPC polish with just a 90 degree flat.
