Haiyu Optical is a quality fiber optic cable manufacturer out of Shenzhen, China. Haiyu Optical holds ISO9001 certification and we are continually pushing the limits of increasing quality, outpacing our competitors. We have since grown to a team of dozens of individuals after our founding in 2008. We own and operate our own 1500 square meter factory in Shenzhen. Our products are all approved by UL, ROSH & CE.
What is the parameter of those products?
|
|
Single-Mode Fiber |
Multi-Mode Fiber |
||
|
PC |
UPC |
APC |
PC |
|
|
Insertion Loss |
≤0.3 dB |
≤0.3 dB |
≤0.3 dB |
≤0.3 dB |
|
Return Loss |
≥40 dB |
≥50 dB |
≥60 dB |
N/A |
|
Operating Wavelength |
1310nm & 1550nm |
850nm & 1300 nm |
||
|
Repeatability |
≤0.1 dB |
|||
|
Working Temperature |
-20~+60°C |
|||
|
Service Life |
>1,000 mating cycles |
|||
|
Fiber Type |
Manufacturer |
Colors Available |
|
9/125 μm |
YOFC or Corning |
Yellow |
|
50/125 or 62.5/125 μm |
YOFC or Corning |
Orange |
|
OM3 or OM4 50/125 μm |
YOFC or Corning |
Aqua |
|
OM5 50/125 μm |
YOFC or Corning |
Lemon Green |

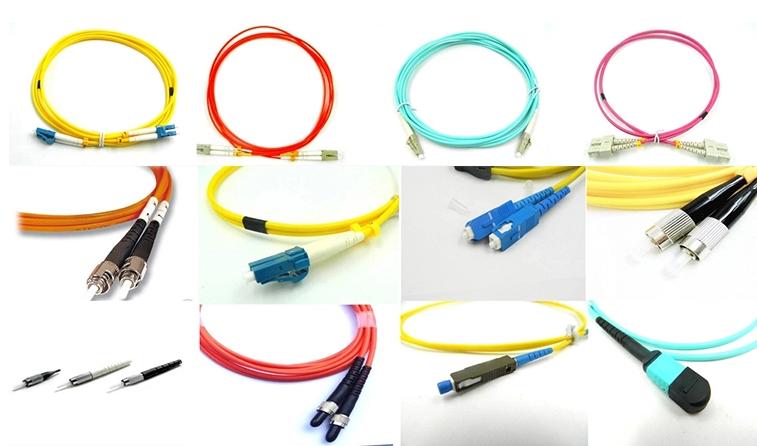

· SC
· LC
· ST
· FC
· MTRJ
· MU
· SMA
· E2000
· D4
· DIN
· MPO
· MTP
Fiber Optic Ferrule Polish Styles Options:
· Physical Contact (PC)
· Ultra Physical Contact (UPC)
· Angled Physical Contact (APC)
Cable Jacket Options:
· PVC - Polyvinyl Chloride
· LSZH - Low Smoke Zero Halogen
· OFNR- Optical fiber nonconductive riser
· OFNP - Optical fiber nonconductive plenum
· HYTREL
Ferrules:
· We machine our ceramic ferrules with great precision using zircnium dioxide
· Each ferrule has a beautiful end face polishing and full inspection prior to terminating to the cable
· Low insertion loss and high return loss
· High stability and repeat
· In accordance with Telcordia GR-326-CORE Standards
Product Application:
· Local Area Network (LAN)
· Datacenter
· Telecommunication Optic Transmission Network
· Optical Access Network (OAN)
· Active Device Termination
· CATV
· Fiber Optic Data Transmission (FODT)

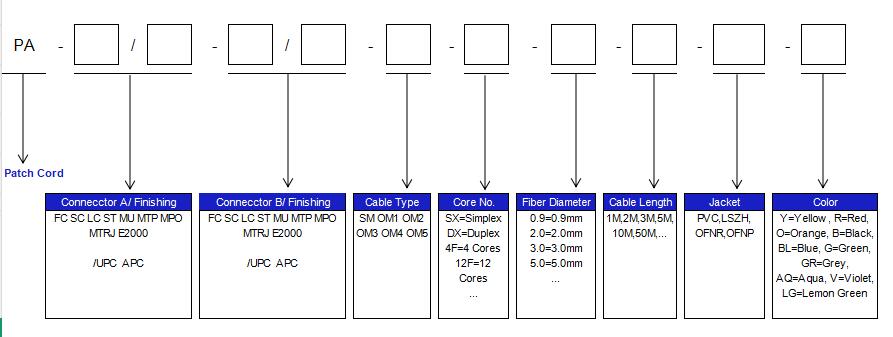

Order Information:
