Product introduction

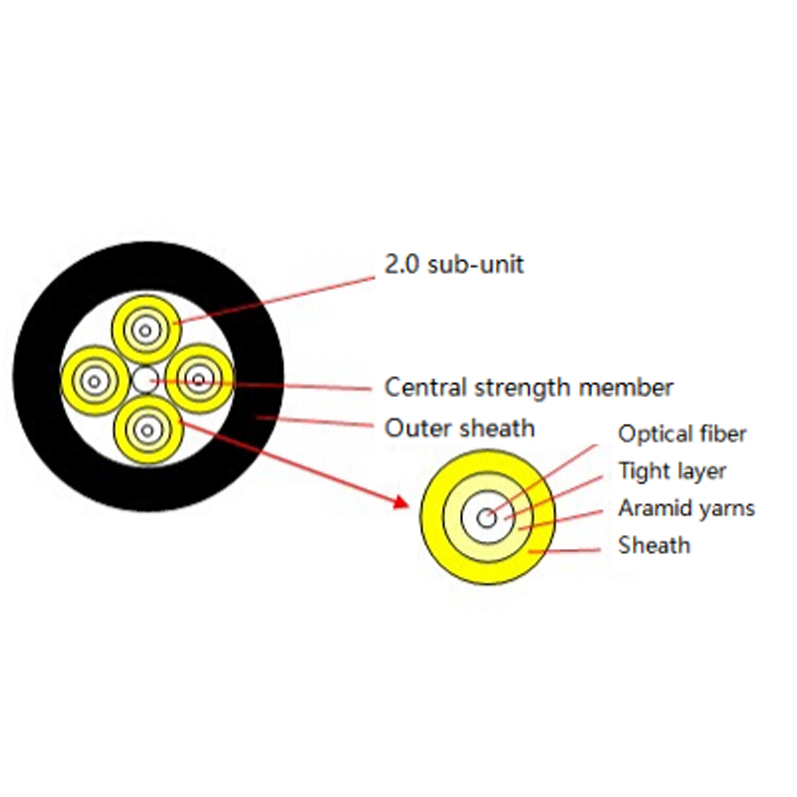

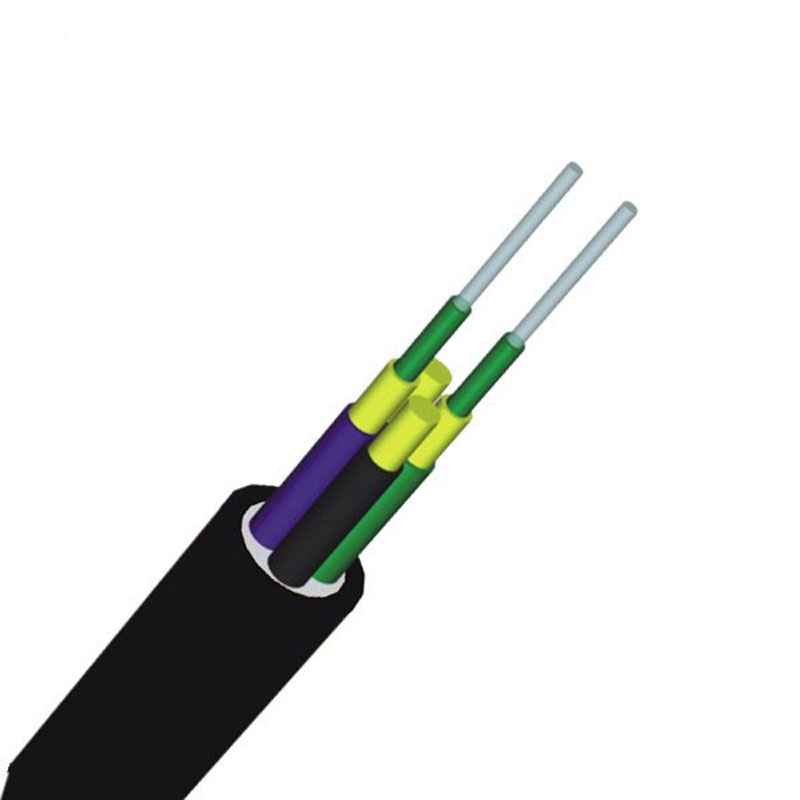

Tight buffered fibres are surrounded with a layer of aramid yarns as the strength member. A LSZH inner sheath is extruded on the tight buffered fibre to form an optical sub-unit. Then optical sub-units and fillers are stranded into a cable core. Finally, a LSZH sheath is extruded outside the core. The fillers can be made of other high-strength yarns and other sheath materials are available on request.
Product Model：GJYFJH
Technical Features
• Good mechanical and temperature performances
• Good crush resistance and flexibility
• Small size and light weight, supporting bulk data transmission
• Mainly applied to horizontal and vertical cabling at wireless base stations, applicable to FTTA(fibre to the antenna)
Application
Mainly applied to horizontal and vertical cabling at wireless base stations, applicable to FTTA(fibre to the antenna)
Technical Parameters:
Environmental Characteristic:
• Transport/storage temperature: -20℃ to +60℃
Delivery Length:
• Standard length: 2,000m; other lengths are also available.
