Product Description

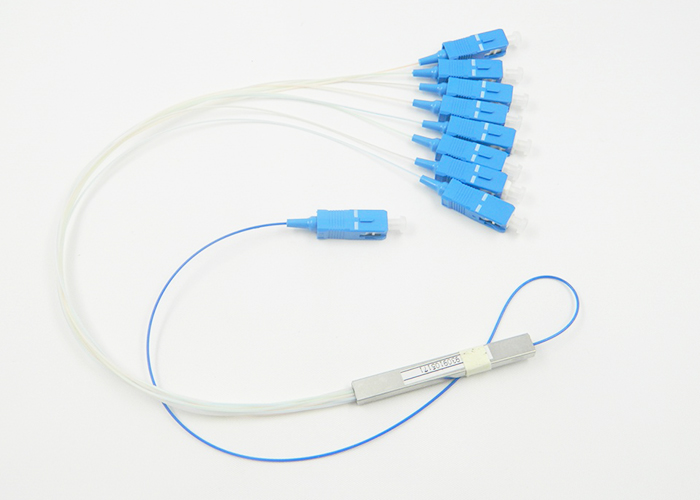

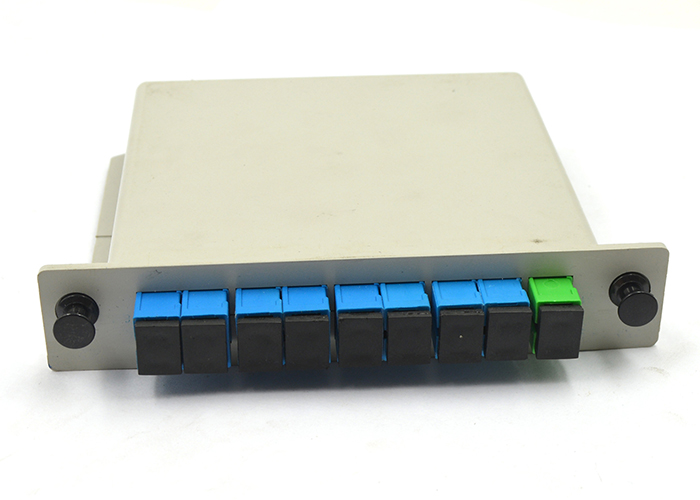

PLC splitter is an optical power distribution component based on silica optical waveguide technology. It is widely used in PON networks to realize optical signal power management.
Benefits
• Low insertion and low PDL
• Excellent environmental stability
• Compliant with Telcordia GR-1209/1221-Core
• Cable sizes 250μm, 900μm and 3mm
• Good uniformity
Apllications
• FTTx (FTTP, FTTH, FTTN, FTTC)
• Passive Optical Networks (PON)
• Local Area Networks (LAN)
• CATV system
• Test equipment
Specification
|
type |
1x4 |
2x4 |
1x8 |
2x8 |
1x16 |
2x16 |
1x32 |
2x32 |
1x64 |
|
Fiber Type |
9/125um SMF28e or customer specified |
||||||||
|
Operation Wavelength |
1260~1650nm |
||||||||
|
Insertion Loss (dB)(Typ) |
<7.1 |
<7.3 |
<10.0 |
<10.3 |
<13.5 |
<14.0 |
<16.8 |
<17.3 |
<20.0 |
|
Insertion Loss (dB)(Max)1 |
<7.5 |
<7.7 |
<10.5 |
<10.8 |
<14.0 |
<14.7 |
<17.5 |
<18 |
<20.3 |
|
Uniformity (dB)(Max) |
<0.7 |
<1.0 |
<1.0 |
<1.2 |
<1.5 |
<2.0 |
<2.0 |
<2.5 |
<2.5 |
|
Polarization Dependent Loss (dB)(Max) |
<0.3 |
<0.40 |
<0.30 |
<0.40 |
<0.3 |
||||
|
Directivity (dB)(Min) |
≥55 |
||||||||
|
Return Loss (dB)(Min) |
≥55 |
||||||||
|
Operating Temperature ( oC) |
-40 to +85 |
||||||||
|
Storage Temperature ( oC) |
-40 to +85 |
||||||||
Insertion loss is excluding connector loss at typically 0.2dB.
