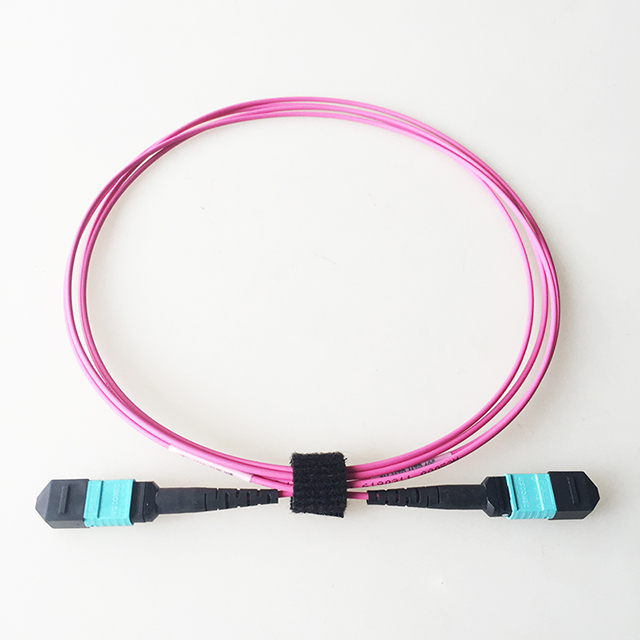

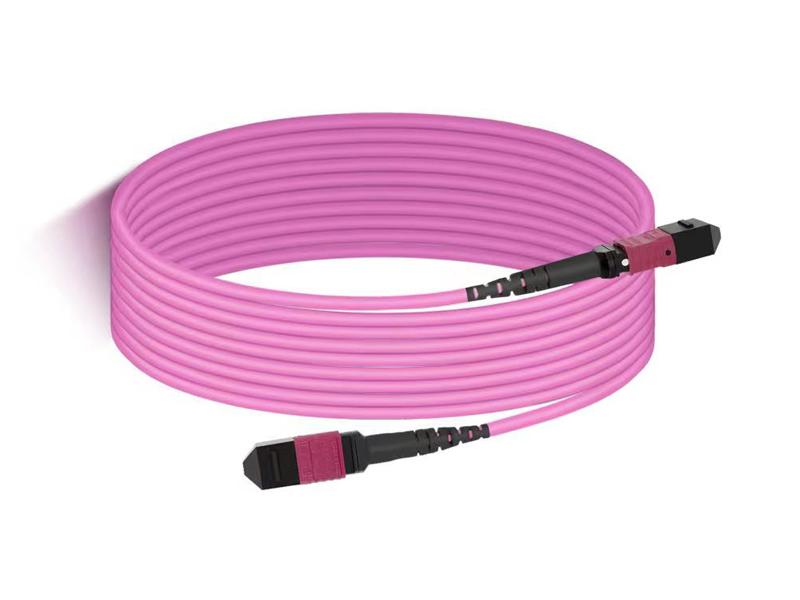

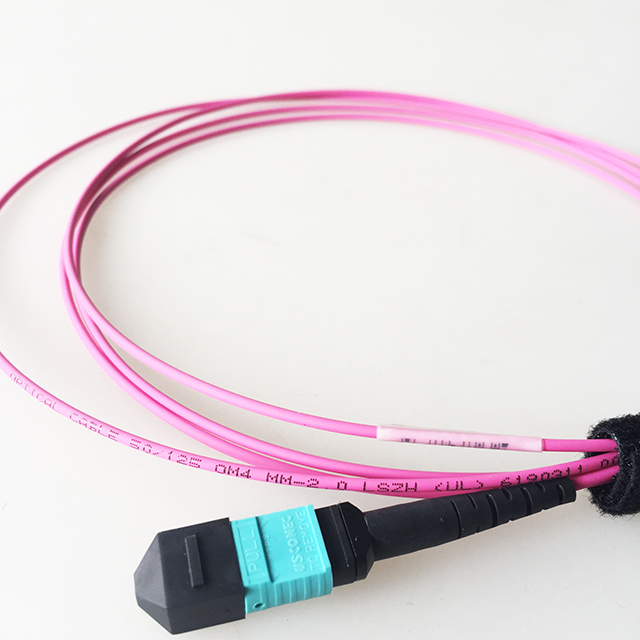

12F MTP MPO Female Multimode OM4 Fiber Optic Patch Cable

PRODUCT DESCRIPTION

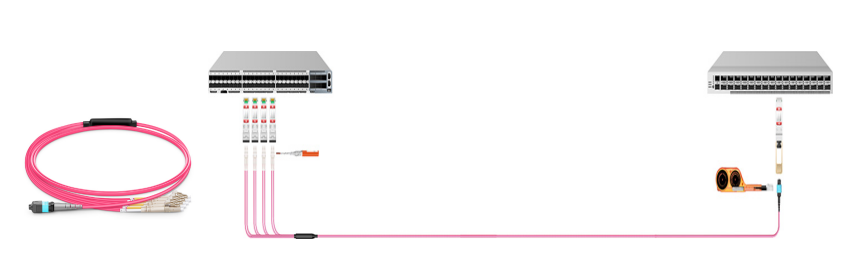

The MPO/MTP Trunk cable is a multi-fiber cable assembled with MPO/MTP connector at either end. It is designed for 40G QSFP+ SR4, 40G QSFP+ CSR4 and 100G QSFP28 SR4 optics direct connection.

It is widely used in the data center, central office, and any other high-density applications, both at single-mode and multi-mode wavelength.

MTP/MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles.

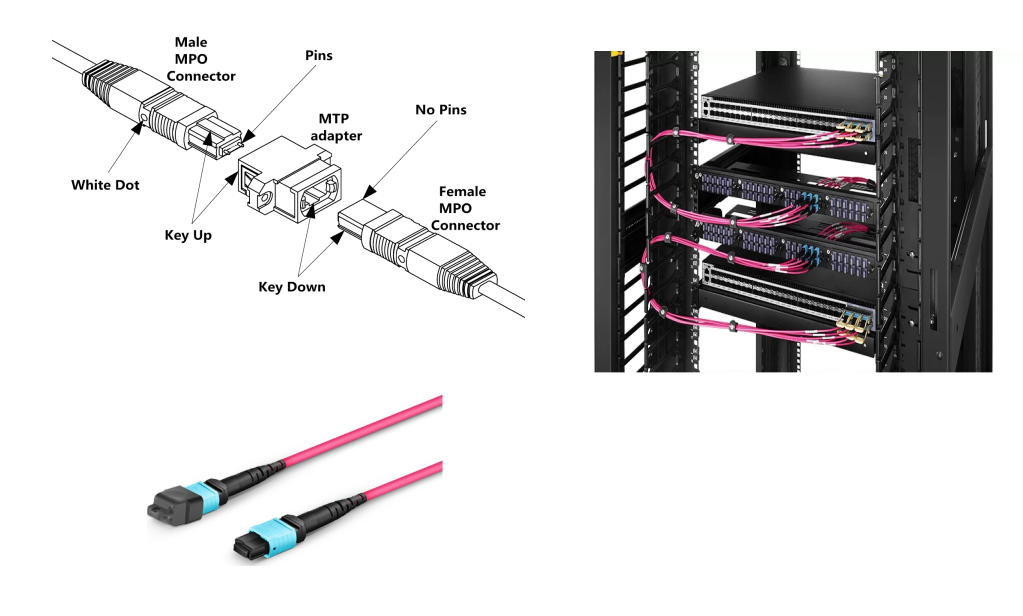

0.35dB IL, MTP Female to MTP Female connector and 3.0mm Plenum (OFNP) bunch cable is designed for 40G/100G direct connection and high-density data center applications.

MPO/MTP patch cord is not currently designed for field-fit applications, so it must be factory terminated. Since the sequence of the fibers cannot physically be changed after termination, making the polarity clear is important. According to IEC，there are three types, Polarity A, B, and C. Which type to choose depends on the individual applications. If the polarity is not be made correctly, the whole system will not work normally. Kindly refer below chart and confirm which polarity type you need.

FEATURES

• Options of 12 to 144 fibers
• With 4、8、12 or 24 core connector,minimizing faulty and reduce wiring space
• Smoothly upgrade from 10G to 40G, 100G network ,the time delay index of 100G transmission is supported
• Available  in  single  mode(9/125um), multimode(50/62.5/125um), meet  client's needs in different industries
• Round  mini cable  structure,eliminate bend sensitivity, make  storage  and installation convenient

Technical Information

Test Assured Program

Haiyu Opticl has strictly test program to make sure every MPO/ MTP trunk cable 100% pass each test step. The Polarity test checking the polarity of each MPO MTP trunk cable. 3D interferometer provides verification of MTP/MPO polishing process, and making all parameters of the polished MT ferrule complies and exceeds industry standards. Clean optical connectors are paramount in providing a reliable, high-performance fiber optic infrastructure.

Range of application

Optical System Access Network

Telecommunications networks

Broadband/CATV networks

Data communications networks, including high-bandwidth equipment

Quality Certification

Quality and standards are the foundation of Haiyu Optical . We are dedicated to providing customers with the outstanding, standards-compliant products and services. Haiyu Optical has passed many quality system verifications, like ISO9001 and RoHS, established an internationally standardized quality assurance system and strictly implemented standardized management and control in the course of design, development, production, installation and service.

Order Informations

Questions & Answers

Q:I wonder what's the difference between OFNP and LSZH cable jacket?

A:OFNP (plenum) have the highest rated fire retardant where it emits little smoke during combustion, LSZH(Low Smoke Zero Halogen) cable jacket is composed of thermoset compounds that emit limited smoke and no halogen when exposed to high sources of heat, eg. flame.

Q:Do you offer MTP fiber optic cable with BIF?

A：Yes. We offer MTP fiber optic cable made with Corning ClearCurve bend insensitive fiber. For multimode, its minimum bend radius is 7.5mm; for singlemode, it's 10mm.

Q:Is this APC or UPC? I know the green usually implies angle polished, but I have a few other cables that look the same as this picture with just a 90 degree flat polish.

A:For singlemode fiber it has APC polish with a 8 degree angle, multimode fiber is UPC polish with just a 90 degree flat.
