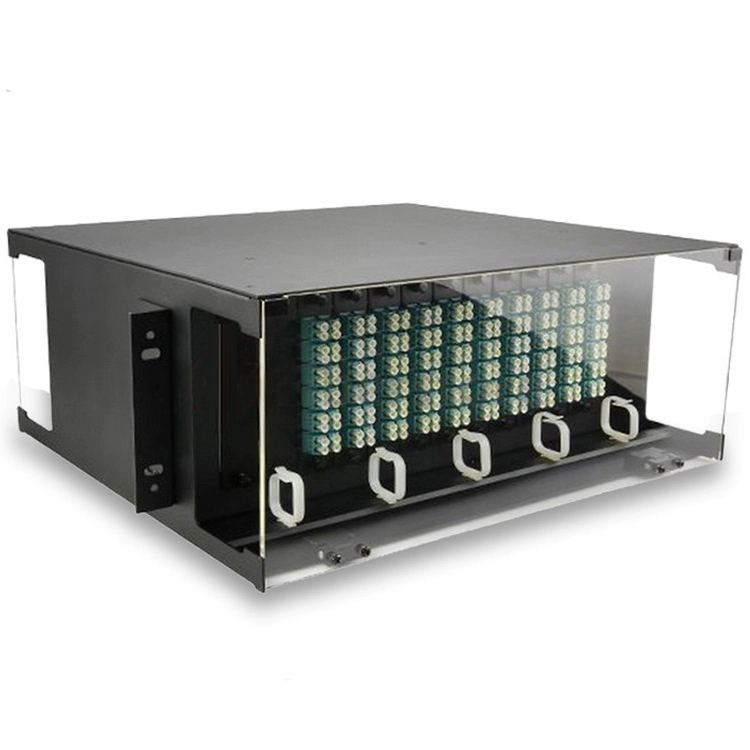

Rack mounted 19 inck 24 Cores MPO distribution frame

The  MPO optical distribution frame  is  used to  connect and  manage the  optical fiber trunkin the  MDA,IDA, or  HAD distribution area of a data center. It  is  installed  in a  19

 inch  rack  or  cabinet  and  can  be  pre-connected  to  the  MPO  conversion  module  or the front panel of an MPO adapter.

Technical Features

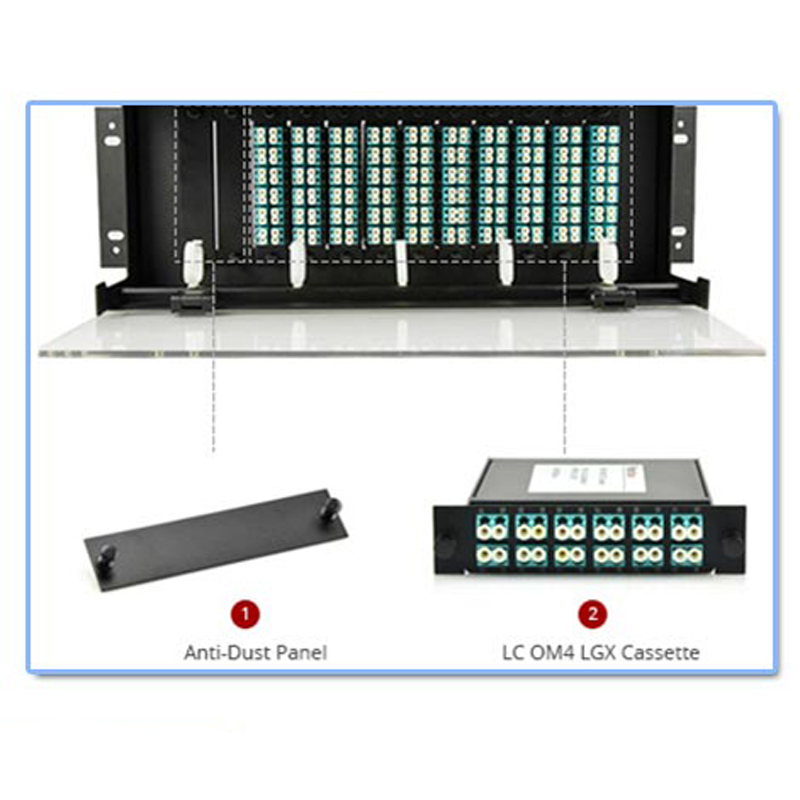

• Can install 4pcs MPO cassettes, and manage 288 cores max;
• Can install 4pcs MPO adapter panels, and manage 864 cores max;
• Produced with high-quality cold-rolled steel sheet, the main body's depth is 1.5mm;
• No fur, no bubble, no screw to fasten, snap-in top cover can be opened without any tools;
• With high-quality acrylic protect cover in front, look nice and elegant.

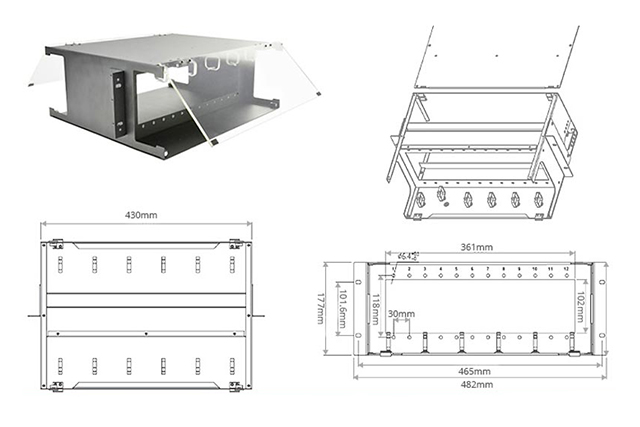

Drawing:
